BEISU Factory BS-1000 Single shaft shredder machine for PE/PP/PET/PC/Nylon

Name: BEISU Factory BS1000 Single shaft shredder machine for PEPPPETPCNylon
Brand: BEISU
Price: 22 USD

Quality BEISU Factory BS-1000 Single shaft shredder machine for PE/PP/PET/PC/Nylon wholesale

Place of Origin : CN;JIA

Brand Name : BEISU

Certification : CE,ISO

Supply Ability : 200 Set/Sets per Year

Packaging Details : Film packing or wood package as customer requirements

MOQ : 1 - 2 Sets

Price : $22,000.00

Condition : New

Plastic Type : PA, PA, PA, PA, PA, PA, PA, PA

Machine Type : Plastic Shredder

Max.Production Capacity (kg/h) : 3000

Production Capacity (kg/h) : 500 - 3000kg/h

Use : Waste Plastic Crusher

Shaft Design : Single

Voltage : 220V/380V/415V/440V

Dimension(L*W*H) : 4000mm*2500mm*2200mm

Power (kW) : 55

Weight (T) : 4

Warranty : 1 Year

After-sales Service Provided : Online support, Online support, Online support, Online support, Online support

Applicable Industries : Manufacturing Plant

Key Selling Points : Automatic

After Warranty Service : Field maintenance and repair service, Field maintenance and repair service, Field maintenance and repair service, Field maintenance and repair service

Local Service Location : Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan, Uzbekistan

Showroom Location : none

Marketing Type : Hot Product 2019

Machinery Test Report : Provided

Video outgoing-inspection : Provided

Warranty of core components : 1 Year

Core Components : Gearbox, Gearbox, Gearbox, Gearbox, Gearbox, Gearbox

Raw material : PE pipes/PVC pipes/Wood/Pallets/Plastic containers

Motor power : 55Kw

Material blade : SKD-11 or Stainless steel or Tungsten steel

Blade type : V

Rotary blade : 68

Fixed blade : 2~4PCS

Bearing brand : NSK or SKF or Wafandian

OIL filling system : Oil pump

Contactor brand : SIEMENS

PLC : SIEMENS

Port : SHANGHAI or NINGBO PORT

Contact Now

Single shaft shredder machine manufacturer PVC/PE/PP/PPR/PET/ABS grinder in sale

BEISU Factory BS-1000 Single shaft shredder machine for PE/PP/PET/PC/Nylon

Application of single shaft shredder: The single-shaft shredder can meet the waste recycling requirements of various industries, and is suitable for the recycling of plastic, paper, wood, fiber, rubber, and domestic garbage. There are many types of recyclable materials. It is suitable for recycling a variety of large solid materials, difficult-to-handle materials, plastic containers and plastic buckets, and plastic pads. The output size can be as small as 20mm according to different requirements. And can provide various feeding hoppers according to customer needs. The equipment rotates at low speed, low noise, and more energy saving.

Application scope: · Plastics-general-purpose plastics in the fields of injection molding, extrusion, blown film, etc., head block materials, etc. · Timber-wooden pallets, logs, wood scraps, etc. · Paper-document paper, wrapping paper, cardboard, etc. · Cable-copper core, aluminum core cable and composite cable · Aluminum-cans, aluminum chips, etc. · Chemical fiber-carpet, labor insurance, etc. · Sponge-industrial waste · Composite materials-glass fiber products, automobile windshield, sealing tape, etc. · Destruction-imitations (counterfeit), substandard products, expired items, etc.

The working principle of the single shaft shredder: The material enters the chassis from the hopper, the pusher box pushes the material to the rotating knife roller under the push of the hydraulic cylinder, the rotating movable knife and the fixed knife crush the material, the crushed material falls through the screen, and then is transported by the auxiliary conveying equipment Go to the next process or collect and pack. The material enters the inside of the shredding box through the feeding system. The shredding blade is carried on the box. The pushing box pushes the material to the vicinity of the blade. The material is torn, squeezed, and sheared by the shredding blade. Small pieces of material are discharged from the screen holes.

Model	BS-600	BS-800	BS-1000	BS-1500	BS-2000
Shaft Length(mm)	600	800	1000	1500	2000
Shaft Diameter(mm)	220	400	400	400	400
Move Blades QTY(pcs)	26	46	58	68	68
Fixed Blades QTY(pcs)	2	22	2	3	3
Motor Power(KW)	18.5	37	45	55	75
Hydraulic Power(KW)	2.2	3	4	5.5	5.5
Hydraulic Stroke(mm)	600	850	850	950*2	950*2
Weight(kg)	1600	3500	4000	4500	4800
Capacity	300kg/h	550kg/h	1000kg/h	1500kg/h	1500kg/h

The core patents of the single shaft shredder:

A1: Shredder shaft; One-piece knife shaft, impact resistance. Large torque. Long-term movement without deformation, the blade on the knife shaft is detachable for easy cleaning; A2: Shredder blade; Embedded blade locking method, the tool is more impact-resistant, and the shredding ability is stronger. The movable knife adopts the "V" installation type, which cuts evenly during the entire shredding work. Reduce energy consumption. Noise; There are four pieces The cutting edge can be rotated 90° after being worn and continue to be used. A3: Shredder blade;Each movable knife has four cutting edges, which can be rotated by 90 to continue use after wear; each fixed knife has 2 cutting edges, which can be rotated 180 for continuous use after wear, which enhances the interchangeability of the movable knife and the fixed knife. Use cycle to reduce costs; A4: There are different cutter shafts and cutter type designs for different materials to improve efficiency and save energy; A5: Shredder driving system;Equipped with a hydraulic reciprocating driving force system, with a firm structure and stable operation; the guide bar can be exchanged or adjusted, for different materials, one machine can be used for multiple purposes; A6: Shredder electricity ; Multiple protection and safety measures, compact and neat appearance design;

Product Tags:

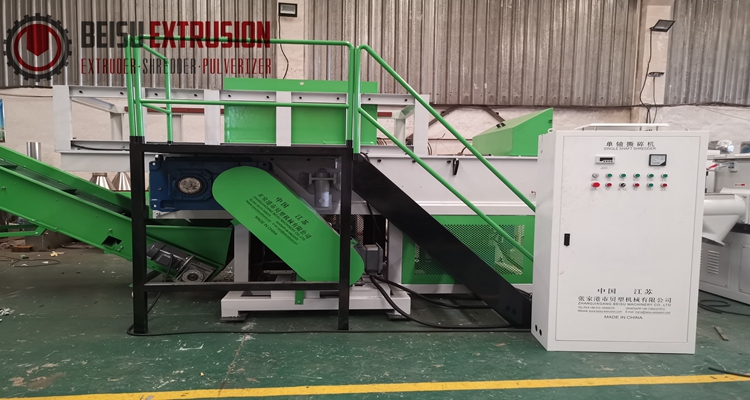

BEISU Factory BS-1000 Single shaft shredder machine for PE/PP/PET/PC/Nylon Images
